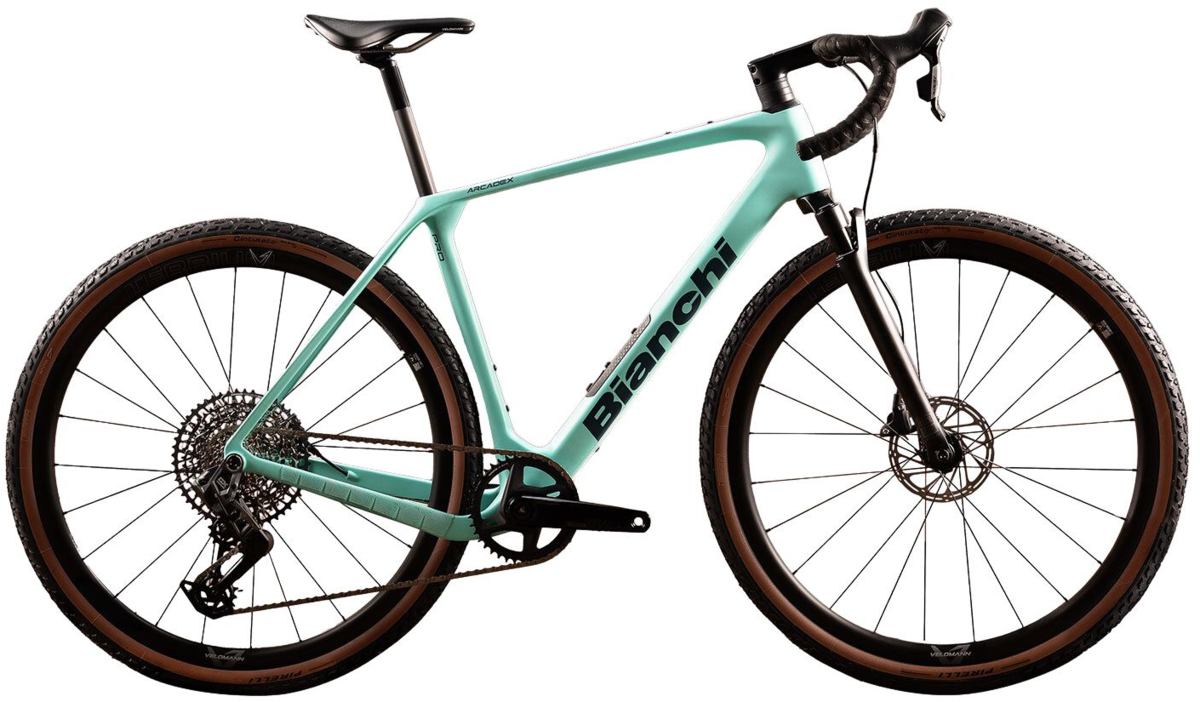

Bianchi Arcadex PRO GRX 820/822

Bianchi Arcadex PRO GRX 820/822
  • Color: AF - CK16/Green Watter Matte
  • Color: AW - Green/Graphite Matte
$4,100.00
Color:
Size: Select size
Wheel Size: 700c
Please select options Unavailable

Details

The new Arcadex PRO is available with or without a Rockshox Rudy XPLR suspension front fork with 30mm of travel with Shimano’s mechanical GRX 822. The Pro is offered in two full matt colorways: celeste with dark turquoise accents, or dark forest green with black detailing.

Specs

Frame Arcadex PRO Disc Brake Specification: Flat Mount 140/160 Bottom Braket Standard: PressFit 86.5 X Ø41 Rear Axle: thru12 OLD (Over-Locknut-Dimension): 142 mm Front Derailleur:Non Compatible Rear Derailleur: SRAM UDH Hanger type Max Chainring Compatibility:
Fork Bianchi Arcadex Fork Disc Brake Specification: Flat Mount 140/160 Front Axle: thru12 OLD (Over-Locknut-Dimension): 100 mm Tire Clearance: ETRTO 622-42mm Steer tube Diameter: 1 1/8"" Material: Epoxy - SM Carbon Fiber Composite
Wheels Shimano SM-RT70 IceTech Hub Interface: Centerlock Rotor Diameter: 160 mm (front&Rear)
Tires Pirelli Cinturato™ GRAVEL M Classic, 45-622 tan sidewall
Bottom Bracket Shimano SM-BB72-41B, press fit
Crankset Shimano GRX 820 FC-RX820-1, 40T Crank Length: 170mm-XS(47)-SM(51), 172.5mm-MD(55)-LG(58), 175mm-XL(61)
Shifters Shimano GRX 820 ST/BL-RX820
Rear Derailleur Shimano GRX 822 RD-RX822, SGS Maximum Cassette Sprocket 51T
Cassette/Freewheel Shimano CS-M7100-12 speed, 11-51T Driver body Interface: MicroSpline
Chain Shimano CN-M7100
Brakes Shimano Hydraulic Brake, BR-RX820
Rotors Shimano SM-RT70 IceTech Hub Interface: Centerlock Rotor Diameter: 160 mm (front&Rear)
Handlebars Velomann Gravel ICR Alloy Flare: 16° Drop: 130mm Reach 70mm Interface Diameter: 1 1/4"" (31.8mm) HandleBar Widths: 400 - SX(47) SM(51), 420 - MD(55) LG(58), 440 -XL(61)
Tape/Grips Bianchi Hexagon tape 2.5mm thickness, Full black
Stem Velomann AICR Alloy Rise: -2° Steerer Diameter: 1-1/8"" (28.6mm) HB interface Diameter: 1-1/4"" (31.8mm) Stem Lengths: 80mm - XS(47), 90mm - SM(51), 100mm-MD(55), 110mm-LG(58),120m -XL(61)
Headset Bianchi Custom Acros ICR (Internal Cable Rounting) Spacers:5 mm x1, 10mm x3 Headtube Cover: Bianchi Costum Compresion Ring: 1.125 Inch Top Bearing: Angular contact Bearing 42x52x7 + seal Bottom Bearing: Angular contact Bearing 40x52x7 + seal
Seatpost Velomann Carbon UD SeatPost O.D: Ø27.2 mm Seatpost lengths: 300mm-SX(47), 350mm- SM(51) MD(55), 400mm-LG(58) XL(61)
Saddle Velomann MITORA 149 H1 cover: soft touch, padding: foam, shell: nylon carbon rails: Aisi Steel lenght: 250mm width: 149mm weight: 230g ± 2
Pedals Sold Separately

* Subject to change without notice.

Part Numbers

Option UPC MPN
AF - CK16/Green Watter Matte / X-Small / 700c 08059919037173 YTB85IXSAF
AF - CK16/Green Watter Matte / Large / 700c 08059919037098 YTB85ILGAF
AW - Green/Graphite Matte / X-Small / 700c 08059919037180 YTB85IXSAW
AW - Green/Graphite Matte / Small / 700c 08059919037142 YTB85ISMAW
AW - Green/Graphite Matte / Medium / 700c 08059919037128 YTB85IMDAW
AW - Green/Graphite Matte / Large / 700c 08059919037104 YTB85ILGAW
AW - Green/Graphite Matte / X-Large / 700c 08059919037166 YTB85IXLAW
