Bianchi Arcadex PRO APEX/GX AXS

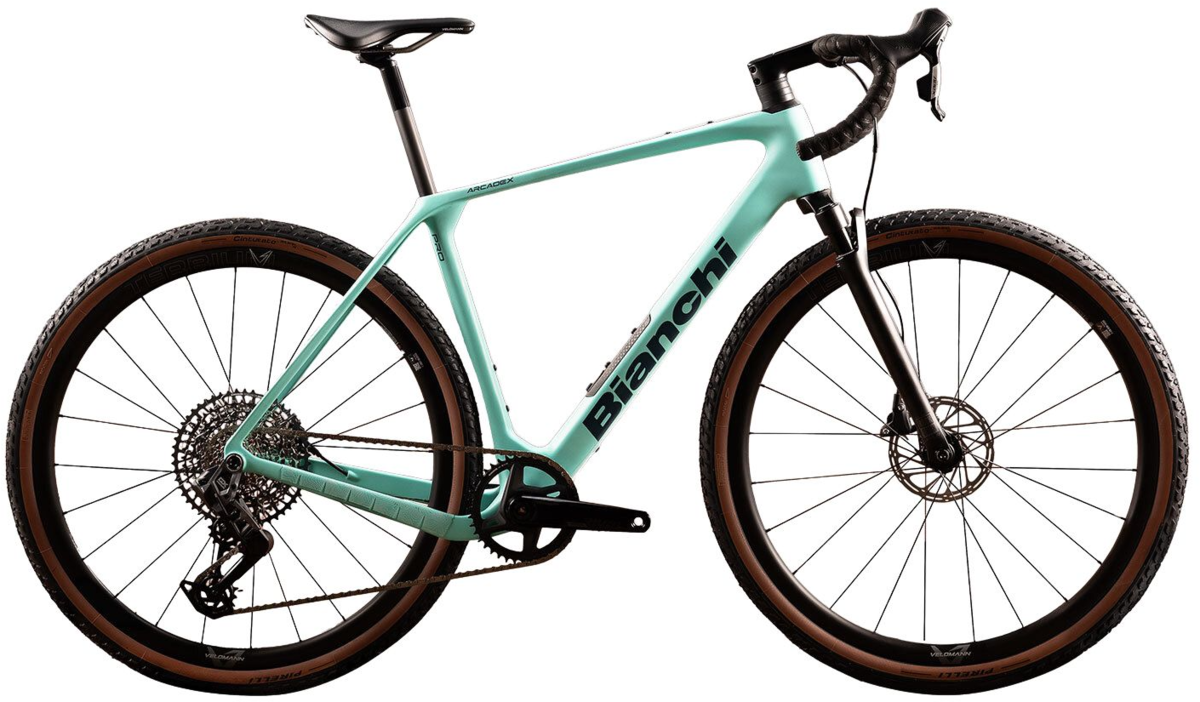

Bianchi Arcadex PRO APEX/GX AXS
  • Color: AF - CK16/Green Watter Matte
  • Color: AW - Green/Graphite Matte
$5,000.00
Color:
Size: Select size
Wheel Size: 700c
Please select options Unavailable

Details

The new Arcadex PRO is available with or without a Rockshox Rudy XPLR suspension front fork with 30mm of travel. The Pro is offered in two full matt colorways: celeste with dark turquoise accents, or dark forest green with black detailing.

Specs

Frame Arcadex PRO Disc Brake Specification: Flat Mount 140/160 Bottom Braket Standard: PressFit 86.5 X Ø41 Rear Axle: thru12 OLD (Over-Locknut-Dimension): 142 mm Front Derailleur:Non Compatible Rear Derailleur: SRAM UDH Hanger type Max Chainring Compatibility:
Fork Suspension Fork: RockShox Rudy XPLR Travel: 30 mm Disc Brake Specification: Direct Flat Mount 160/180 Front Axle: thru12 OLD (Over-Locknut-Dimension): 100 mm Tire Clearance: ETRTO 622-50mm Steer tube Diameter: Tapered 1 1/8"" to 1.5"" Fork Rake: 51 mm
Wheels Velomann Terbium clincher and tubeless ready Rim Diameter: 700C Material: Carbon Rim Height: 30 mm Inner Wigth Channel: 25 mm
Tires Pirelli Cinturato™ GRAVEL M Classic, 45-622 tan sidewall
Bottom Bracket SRAM DUB PressFit Road Wide 86.5 X Ø41
Crankset SRAM Rival 1 WIDE 40T Crank Length: 170mm-XS(47)-SM(51), 172.5mm-MD(55)-LG(58), 175mm-XL(61)
Shifters SRAM Apex AXS HRD Shift System
Rear Derailleur SRAM GX Eagle Transmission (T-type AXS)
Cassette/Freewheel SRAM GX Eagle Transmission, XS 1272 T-Type, 10-52T Driver Body Interface: XD
Chain SRAM GX Eagle Transmission Flattop
Brakes SRAM APEX Pad Type: Steel-Backed Organic
Rotors SRAM CenterLine Rotor Hub Interface: Centerlock Rotor Diameter: 160 mm
Handlebars Velomann Gravel ICR Alloy Flare: 16° Drop: 130mm Reach 70mm Interface Diameter: 1 1/4"" (31.8mm) HandleBar Widths: 400 - SX(47) SM(51), 420 - MD(55) LG(58), 440 -XL(61)
Tape/Grips Bianchi Hexagon tape 2.5mm thickness, Full black
Stem Velomann AICR Alloy Rise: -2° Steerer Diameter: 1-1/8"" (28.6mm) HB interface Diameter: 1-1/4"" (31.8mm) Stem Lengths: 80mm - XS(47), 90mm - SM(51), 100mm-MD(55), 110mm-LG(58),120m -XL(61)
Headset Bianchi Custom Acros ICR (Internal Cable Rounting) Spacers:5 mm x1, 10mm x3 Headtube Cover: Bianchi Costum Compresion Ring: 1.125 Inch Top Bearing: Angular contact Bearing 42x52x7 + seal Bottom Bearing: Angular contact Bearing 40x52x7 + seal Base Plate wi
Seatpost Velomann Carbon UD SeatPost O.D: Ø27.2 mm Seatpost lengths: 300mm-SX(47), 350mm- SM(51) MD(55), 400mm-LG(58) XL(61)
Saddle Velomann MITORA 149 H1 cover: soft touch, padding: foam, shell: nylon carbon rails: Aisi Steel lenght: 250mm width: 149mm weight: 230g ± 2
Pedals Sold Separately

* Subject to change without notice.

Part Numbers

Option UPC MPN
AF - CK16/Green Watter Matte / Small / 700c 08059919036831 YTB82ISMAF
AF - CK16/Green Watter Matte / Medium / 700c 08059919036817 YTB82IMDAF
AF - CK16/Green Watter Matte / Large / 700c 08059919036794 YTB82ILGAF
AW - Green/Graphite Matte / X-Small / 700c 08059919036886 YTB82IXSAW
AW - Green/Graphite Matte / Small / 700c 08059919036848 YTB82ISMAW
AW - Green/Graphite Matte / Medium / 700c 08059919036824 YTB82IMDAW
AW - Green/Graphite Matte / Large / 700c 08059919036800 YTB82ILGAW
