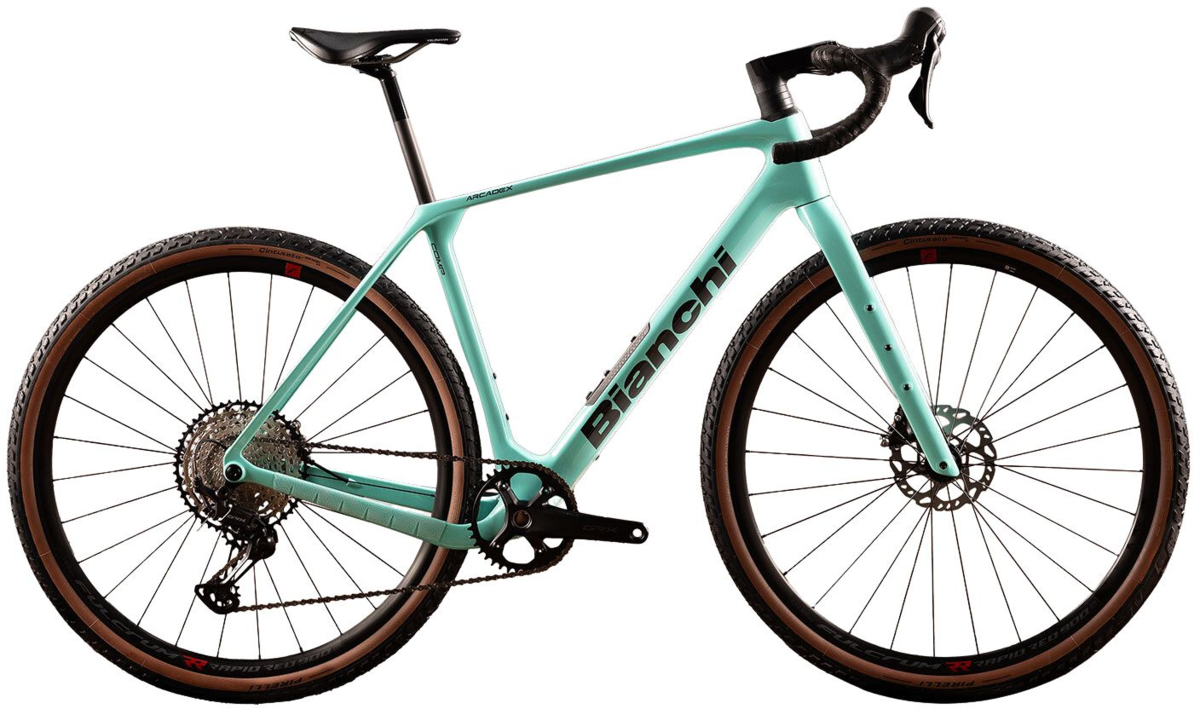

Bianchi Arcadex Comp GRX

Bianchi Arcadex Comp GRX
  • Color: AY - CK16/Graphite Glossy
  • Color: AZ - Sabblia/Graphite Glossy
$2,900.00
Color:
Size: Select size
Wheel Size: 700c
Please select options Unavailable

Details

Bianchi Gravel range best suits the needs of riders looking to enjoy their time in the saddle and tackle the greatest variety of rides. Every surface becomes rideable and every adventure possible.

Specs

Frame Arcadex Comp Disc Brake Specification: Flat Mount 140/160 Bottom Braket Standard: PressFit 86.5 X Ø41 Rear Axle: thru12 OLD (Over-Locknut-Dimension): 142 mm Front Derailleur:Non Compatible Rear Derailleur: SRAM UDH Hanger type Max Chainring Compatibility:
Fork Bianchi Arcadex Fork Disc Brake Specification: Flat Mount 140/160 Front Axle: thru12 OLD (Over-Locknut-Dimension): 100 mm Tire Clearance: ETRTO 622-42mm Steer tube Diameter: 1 1/8"" Material: Epoxy - SM Carbon Fiber Composite
Wheels Fulcrum RapidRed 900 2-Way Fit Ready (for clincher and tubeless ready) Rim Diameter: 700C Material: Aluminum Alloy Rim Height: 24 mm Inner Wigth Channel: 22 mm
Tires Pirelli Cinturato™ GRAVEL M Classic, 45-622 tan sidewall
Bottom Bracket Shimano SM-BB72-41B, press fit
Crankset Shimano GRX 610 FC-RX610-1, 40T Crank Length: 170mm-XS(47)-SM(51), 172.5mm-MD(55)-LG(58), 175mm-XL(61)
Shifters Shimano GRX 610 ST/BL-RX610
Rear Derailleur Shimano GRX 822 RD-RX822, SGS Maximum Cassette Sprocket 51T
Cassette/Freewheel Shimano CS-M7100-12 speed, 11-51T Driver body Interface: MicroSpline
Chain Shimano CN-M7100
Brakes Shimano Hydraulic Brake, BR-RX400
Rotors Shimano SM-RT70 IceTech Hub Interface: Centerlock Rotor Diameter: 160 mm
Handlebars Velomann Gravel ICR Alloy Flare: 16° Drop: 130mm Reach 70mm Interface Diameter: 1 1/4"" (31.8mm) HandleBar Widths: 400 - SX(47) SM(51), 420 - MD(55) LG(58), 440 -XL(61)
Tape/Grips Bianchi Hexagon tape 2.5mm thickness, Full black
Stem Velomann AICR Alloy Rise: -2° Steerer Diameter: 1-1/8"" (28.6mm) HB interface Diameter: 1-1/4"" (31.8mm) Stem Lengths: 80mm - XS(47), 90mm - SM(51), 100mm-MD(55), 110mm-LG(58),120m -XL(61)
Headset Bianchi Custom Acros ICR (Internal Cable Rounting) Spacers:5 mm x1, 10mm x3 Headtube Cover: Bianchi Costum Compresion Ring: 1.125 Inch Top Bearing: Angular contact Bearing 42x52x7 + seal Bottom Bearing: Angular contact Bearing 40x52x7 + seal
Seatpost Velomann Carbon UD SeatPost O.D: Ø27.2 mm Seatpost lengths: 300mm-SX(47), 350mm- SM(51) MD(55), 400mm-LG(58) XL(61)
Saddle Velomann MITORA 149 H2 cover: soft touch, padding: foam, shell: nylon carbon rails: Steel lenght: 250mm width: 149mm
Pedals Sold Separately

* Subject to change without notice.

Part Numbers

Option UPC MPN
AY - CK16/Graphite Glossy / X-Small / 700c 08059919037470 YTB87IXSAY
AY - CK16/Graphite Glossy / Small / 700c 08059919037432 YTB87ISMAY
AY - CK16/Graphite Glossy / Medium / 700c 08059919037418 YTB87IMDAY
AY - CK16/Graphite Glossy / Large / 700c 08059919037395 YTB87ILGAY
AY - CK16/Graphite Glossy / X-Large / 700c 08059919037456 YTB87IXLAY
AZ - Sabblia/Graphite Glossy / X-Small / 700c 08059919037487 YTB87IXSAZ
AZ - Sabblia/Graphite Glossy / Small / 700c 08059919037449 YTB87ISMAZ
AZ - Sabblia/Graphite Glossy / Medium / 700c 08059919037425 YTB87IMDAZ
